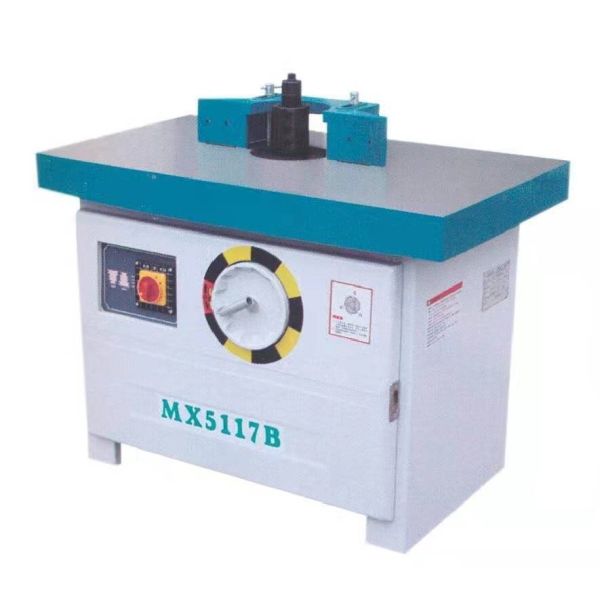

MX5117B Industrial Vertical Spindle Moulder
Product Overview
The BH BHM-MX5117B is a robust, single-spindle vertical milling machine engineered for professional woodworkers and industrial manufacturers. Designed for high-efficiency processing, this machine excels at intricate shaping, precise grooving, and detailed profiling tasks. Built with a heavy-duty cast iron foundation, it offers exceptional stability and vibration damping, ensuring a smooth, quiet cut every time.
Unlike standard routers, this industrial moulder features a massive 1100 x 680mm worktable that provides ample surface area for handling large panels and heavy timber with ease. Whether you are crafting custom moldings, cutting tenons, or creating complex decorative edges, the MX5117B delivers the power and accuracy you demand.
Technical Specifications
|
Model
|
|
|
|
Working table size
|
|
|
|
Max. milling thickness
|
|
|
|
Spindle diameter
|
|
|
|
Spindle speeds
|
|
|
|
Power
|
|
|
|
Weight
|
|
|
|
Dimensions
|
|
|
Features:
1. High work efficiency, low energy consumption, suitable for all kinds of wood products, economical and practical.
2. Made of excellent materials, in addition to the molding and milling of wood, trenching and other processing.
3. The machine structure design is reasonable, improve the safety, adapt to the emergency stop and treatment of various
emergencies.
Key Features:
1. Heavy-Duty Cast Iron Construction
The core structure utilizes high-grade cast iron for the table and fence. This material is meticulously ground to ensure absolute flatness and straightness, which is critical for maintaining dimensional accuracy in your finished products. The weight of the machine (300kg) acts as a natural damper, minimizing chatter during high-speed operations.
2. High-Performance Spindle System
Equipped with a precision-balanced spindle, this machine operates at high rotational speeds (8,000-10,000 RPM) without excessive vibration. The 35mm spindle diameter allows for the secure mounting of a wide variety of tooling, from simple V-groove bits to complex profile cutters, giving you maximum versatility.
3. Energy Efficiency & Power
Available with motor options ranging from 3kW to 7.5kW, you can select the perfect power-to-weight ratio for your specific workload. The motor utilizes high-purity copper windings for superior thermal efficiency, ensuring reliable performance during long production runs while keeping energy consumption low.
4. Safety & Operator Convenience
Safety is prioritized with a prominent, easy-to-reach emergency stop system. The machine is designed for "plug-and-play" integration into your workshop's electrical system, though for safety compliance, it ships without a plug (requiring connection by a qualified electrician to match local voltage standards).
5. Future-Proof Design
The worktable includes pre-drilled mounting holes specifically designed for the future installation of an automatic feeding system. This allows you to upgrade from manual feeding to automated production seamlessly as your business scales, protecting your initial investment.
Frequently Asked Questions
Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you are ordering from us.
Q4: This is my first time using this machine. Is it easy to operate?
A4: An instructional video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.
Q5: What is your minimum order quantity and delivery?
A5: Our minimum order quantity is 1 machine. We can ship the machine directly to your country's port. Please let us know your port name. We will provide you with the best shipping and machine price.
